Teltonika RUT300 купить недорого в Минске, цена

Код товара: 5475

Производитель:

Наличие:

В наличии

Цена по запросу

Доставка по согласованию с менеджером
Самовывоз сегодня, бесплатно

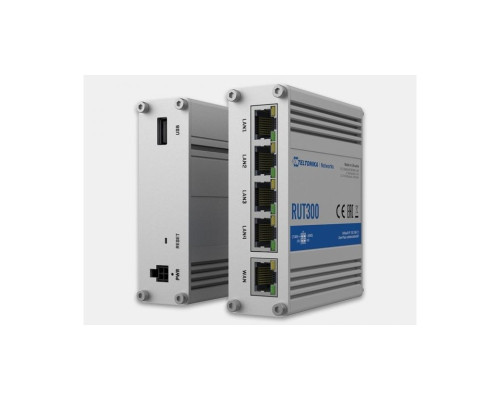

RUT300 - это небольшой высокопроизводительный маршрутизатор с Ethernet-портами (5x RJ45), который идеально подходит для решения сложных задач при построении сетей связи в промышленных сферах.

5 портов Ethernet, 2 настраиваемых цифровых входа/выхода и USB-порт - всё это позволяет легко и быстро подключать различное оборудование к интернету. Предварительно настроенный брандмауэр обеспечивает мгновенную защиту, промышленный роутер RUT300 различными VPN-сервисами, включая OpenVPN, IPsec, PPTP, L2TP & amp; DMVPN, L2TP, DMVPN, Stunnel и другие.

Пассивный PoE помогает быстро начать работу с системой передачи данных, организованной на базе промышленного проводного роутера RUT300 от Teltonika. RUT300 поставляется с предустановленной RutOS от Teltonika и поддерживает систему удалённого управления (RMS).

ОСОБЕННОСТИ

5 портов Fast Ethernet (10/100 Мбит / с). 2 настраиваемых цифровых входа / выхода и USB 2.0
Неограниченная настройка межсетевого экрана через CLI; DMZ; NAT; NAT-T
5 портов Fast Ethernet (10/100 Мбит / с). 2 настраиваемых цифровых входа / выхода и USB 2.0
Многочисленные VPN-сервисы, включая OpenVPN, IPsec, PPTP, L2TP & amp; DMVPN, L2TP, DMVPN, Stunnel и другие
Поддерживает до 4096 идентификаторов VLAN для тегов VLAN и VLAN на основе портов
Совместимость с системой удаленного управления Teltonika

ХАРАКТЕРИСТИКИ

ETHERNET
WAN	1 X WAN PORT, 10/100 MBPS, COMPLIANCE WITH IEEE 802.3, IEEE 802.3U STANDARDS, SUPPORTS AUTO MDI/MDIX CROSSOVER
LAN	4 X LAN PORTS (CAN BE CONFIGURED AS SECONDARY WAN PORTS), 10/100 MBPS, COMPLIANCE WITH IEEE 802.3, IEEE 802.3U STANDARDS, SUPPORTS AUTO MDI/MDIX CROSSOVER
NETWORK
ROUTING	STATIC ROUTES, DYNAMIC ROUTES
NETWORK PROTOCOLS	TCP, UDP, IPV4, IPV6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL V3, TLS, ARP, PPPOE, UPNP, SSH, DHCP, TELNET CLIENT, SNMP, MQTT, WAKE ON LAN (WOL)
VOIP PASSTHROUGH SUPPORT	H.323 AND SIP-ALG PROTOCOL NAT HELPERS, ALLOWING PROPER ROUTING OF VOIP PACKETS
CONNECTION MONITORING	PING REBOOT, WGET REBOOT, PERIODIC REBOOT, LCP AND ICMP FOR LINK INSPECTION
FIREWALL	PORT FORWARDS, TRAFFIC RULES, NAT RULES, CUSTOM RULES
DHCP	STATIC AND DYNAMIC IP ALLOCATION, DHCP RELAY
QOS / SMART QUEUE MANAGEMENT (SQM)	TRAFFIC PRIORITY QUEUING BY SOURCE/DESTINATION, SERVICE, PROTOCOL OR PORT, WMM, 802.11E
DDNS	SUPPORTED >25 SERVICE PROVIDERS, OTHERS CAN BE CONFIGURED MANUALLY
NETWORK BACKUP	WIRED WAN OPTIONS, EACH OF WHICH CAN BE USED AS AN AUTOMATIC FAILOVER
LOAD BALANCING	BALANCE INTERNET TRAFFIC OVER MULTIPLE WAN CONNECTIONS
SSHFS	POSSIBILITY TO MOUNT REMOTE FILE SYSTEM VIA SSH PROTOCOL
SECURITY
AUTHENTICATION	PRE-SHARED KEY, DIGITAL CERTIFICATES, X.509 CERTIFICATES
FIREWALL	PRE-CONFIGURED FIREWALL RULES CAN BE ENABLED VIA WEBUI, UNLIMITED FIREWALL CONFIGURATION VIA CLI; DMZ; NAT; NAT-T
ATTACK PREVENTION	DDOS PREVENTION (SYN FLOOD PROTECTION, SSH ATTACK PREVENTION, HTTP/HTTPS ATTACK PREVENTION), PORT SCAN PREVENTION (SYN-FIN, SYN-RST, X-MAS, NULL FLAGS, FIN SCAN ATTACKS)
VLAN	PORT AND TAG BASED VLAN SEPARATION
WEB FILTER	BLACKLIST FOR BLOCKING OUT UNWANTED WEBSITES, WHITELIST FOR SPECIFYING ALLOWED SITES ONLY
ACCESS CONTROL	FLEXIBLE ACCESS CONTROL OF TCP, UDP, ICMP PACKETS, MAC ADDRESS FILTER
VPN
OPENVPN	MULTIPLE CLIENTS AND A SERVER CAN RUN SIMULTANEOUSLY, 12 ENCRYPTION METHODS
OPENVPN ENCRYPTION	DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC
IPSEC	IKEV1, IKEV2, WITH 5 ENCRYPTION METHODS FOR IPSEC (DES, 3DES, AES128, AES192, AES256)
GRE	GRE TUNNEL
PPTP, L2TP	CLIENT/SERVER INSTANCES CAN RUN SIMULTANEOUSLY, L2TPV3 SUPPORT
STUNNEL	PROXY DESIGNED TO ADD TLS ENCRYPTION FUNCTIONALITY TO EXISTING CLIENTS AND SERVERS WITHOUT ANY CHANGES IN THE PROGRAM’S CODE
DMVPN	METHOD OF BUILDING SCALABLE IPSEC VPNS
SSTP	SSTP CLIENT INSTANCE SUPPORT
ZEROTIER	ZEROTIER VPN CLIENT SUPPORT
WIREGUARD	WIREGUARD VPN CLIENT AND SERVER SUPPORT
MODBUS
MODBUS TCP SLAVE
ID FILTERING	RESPOND TO ONE ID IN RANGE [1;255] OR ANY
ALLOW REMOTE ACCESS	ALLOW ACCESS THROUGH WAN
CUSTOM REGISTERS	MODBUS TCP CUSTOM REGISTER BLOCK, WHICH ALLOWS TO READ/WRITE TO A FILE INSIDE THE ROUTER, AND CAN BE USED TO EXTEND MODBUS TCP SLAVE FUNCTIONALITY
MODBUS TCP MASTER
SUPPORTED FUNCTIONS	01, 02, 03, 04, 05, 06, 15, 16
SUPPORTED DATA FORMATS	8 BIT: INT, UINT; 16 BIT: INT, UINT (MSB OR LSB FIRST); 32 BIT: FLOAT, INT, UINT (ABCD (BIG-ENDIAN), DCBA (LITTLE-ENDIAN), CDAB, BADC), HEX, ASCII
MQTT GATEWAY
GATEWAY	ALLOWS SENDING COMMANDS AND RECEIVING DATA FROM MODBUS MASTER THROUGH THE MQTT BROKER
DNP3
SUPPORTED MODES	TCP MASTER, DNP3 OUTSTATION
DATA TO SERVER
PROTOCOLS	HTTP(S), MQTT, AZURE MQTT, KINESIS
MONITORING & MANAGEMENT
WEB UI	HTTP/HTTPS, STATUS, CONFIGURATION, FW UPDATE, CLI, TROUBLESHOOT, EVENT LOG, SYSTEM LOG, KERNEL LOG
FOTA	FIRMWARE UPDATE FROM SERVER, AUTOMATIC NOTIFICATION
SSH	SSH (V1, V2)
TR-069	OPENACS, EASYCWMP, ACSLITE, TGEM, LIBREACS, GENIEACS, FREEACS, LIBCWMP, FRIENDLY TECH, AVSYSTEM
MQTT	MQTT BROKER, MQTT PUBLISHER
SNMP	SNMP (V1, V2, V3), SNMP TRAP
JSON-RPC	MANAGEMENT API OVER HTTP/HTTPS
MODBUS	MODBUS TCP STATUS/CONTROL
RMS	TELTONIKA REMOTE MANAGEMENT SYSTEM (RMS)
SYSTEM CHARACTERISTICS
CPU	QCA9531, MIPS 24KC, 650 MHZ
RAM	64 MB, DDR2
FLASH STORAGE	16 MB, SPI FLASH
FIRMWARE / CONFIGURATION
WEB UI	UPDATE FW FROM FILE, CHECK FW ON SERVER, CONFIGURATION PROFILES, CONFIGURATION BACKUP
FOTA	UPDATE FW/CONFIGURATION FROM SERVER
RMS	UPDATE FW/CONFIGURATION FOR MULTIPLE DEVICES AT ONCE
KEEP SETTINGS	UPDATE FW WITHOUT LOSING CURRENT CONFIGURATION
USB
DATA RATE	USB 2.0
APPLICATIONS	SAMBA SHARE, USB-TO-SERIAL
EXTERNAL DEVICES	POSSIBILITY TO CONNECT EXTERNAL HDD, FLASH DRIVE, PRINTER
STORAGE FORMATS	FAT, FAT32, NTFS
INPUT/OUTPUT
CONFIGURABLE I/O	2 X CONFIGURABLE DIGITAL INPUTS/OUTPUTS. DIGITAL INPUT 0 - 5 V DETECTED AS LOGIC LOW, 8 - 30 V DETECTED AS LOGIC HIGH. OPEN COLLECTOR OUTPUT, MAX OUTPUT 30 V, 300 MA
EVENTS	EMAIL, RMS
I/O JUGGLER	ALLOWS TO SET CERTAIN I/O CONDITIONS TO INITIATE EVENT
POWER
CONNECTOR	4 PIN INDUSTRIAL DC POWER SOCKET
INPUT VOLTAGE RANGE	7 - 30 VDC, REVERSE POLARITY PROTECTION, VOLTAGE SURGE/TRANSIENT PROTECTION
POE (PASSIVE)	PASSIVE POE. POSSIBILITY TO POWER UP THROUGH LAN PORT, NOT COMPATIBLE WITH IEEE802.3AF, 802.3AT AND 802.3BT STANDARDS
POWER CONSUMPTION	IDLE: 1.3 W, MAX: 3 W
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
ETHERNET	5 X RJ45 PORTS, 10/100 MBPS
I/OS	2 X CONFIGURABLE DIGITAL INPUTS/OUTPUTS ON 4 PIN POWER CONNECTOR
STATUS LEDS	5 X ETH STATUS, 1 X POWER
POWER	1 X 4 PIN DC CONNECTOR
USB	1 X USB A PORT FOR EXTERNAL DEVICES
RESET	REBOOT/USER DEFAULT RESET/FACTORY RESET BUTTON
PHYSICAL SPECIFICATION
CASING MATERIAL	ALUMINIUM HOUSING WITH DIN RAIL MOUNTING OPTION
DIMENSIONS (W X H X D)	100 X 30 X 85 MM
WEIGHT	229 G
MOUNTING OPTIONS	DIN RAIL, FLAT SURFACE PLACEMENT
OPERATING ENVIRONMENT
OPERATING TEMPERATURE	-40 C TO 75 C
OPERATING HUMIDITY	10 % TO 90 % NON-CONDENSING
